The Lumination PVT series is a three-dimensional volumetric designed luminaire designed for those with first cost needs. For total cost of ownership requirements consider our LVT Series. PVT offers even lower installation costs with switchable lumens and CCT, so there is no need to decide the specific product until it is at the jobsite. Suitable for indoor general lighting on both new construction and retrofit solutions.

Features

• Finish: White
• Wattage: 20W/32W/38W
• Voltage: 120-277V
• Color Temperature: 3500/4000/5000K Switchable
• Lumen: 2700/4200/5000
• CRI: 80
• Dimming: 0-10V Dimming
• Housing: Durable, long lasting post painted steel construction
• Lens: Precision formed optical assembly
• Typical Mounting: Fits standard T-Bar grid (drop ceilings)
• Wiring Access: 1/2" trade-size KOs
• T-grid Clips: T-grid clips attached, with holes for seismic wires
• Sensors: Daintree Wireless, with High-end Trim

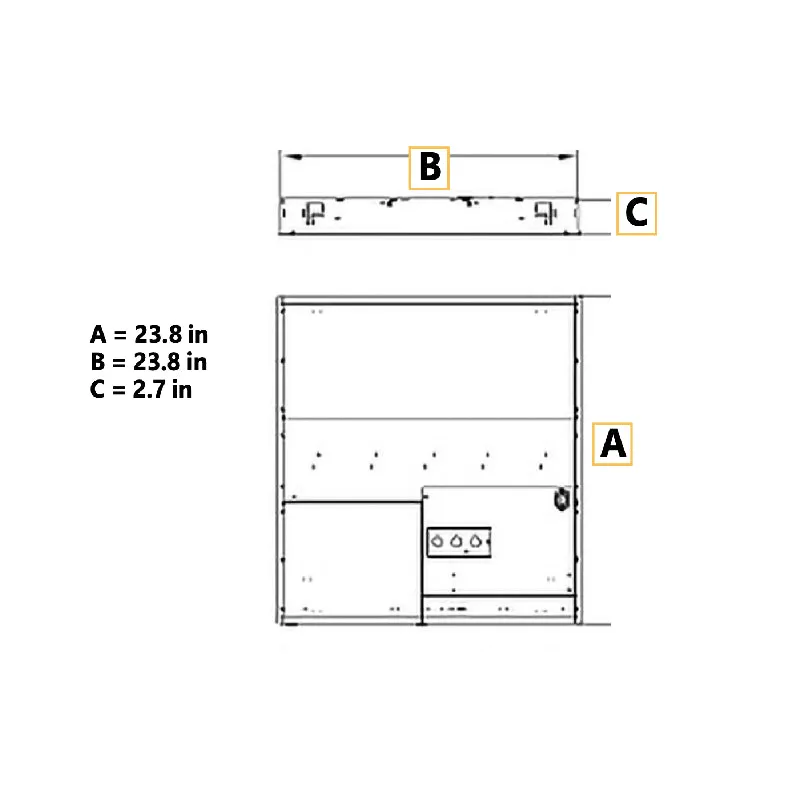

Dimensions

• Length: 23.8"
• Width: 23.8"
• Height: 2.7"


Estimated Life

• L70 @ 50,000 hours


Warranty

• 5 year limited warranty
