Superior Sound & Video:

KanexPro Switchers
Specifically Designed for
Professional Installations

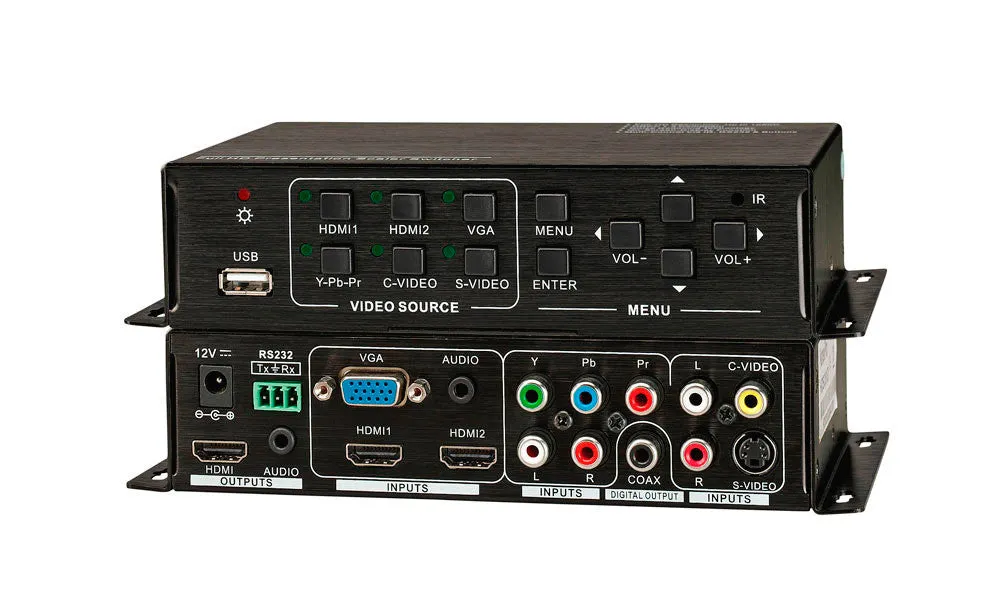

The KanexPro HDSC61D is a Mini Hi-def. Presentation Switcher and Scaler. It scales 6 video inputs (including 2xHDMI, 1xVGA, 1xComponent video, 1xC-video & 1xS-video), all to HDMI output, including the 3.5mm stereo audio and coax audio output.

The HDSC61D scaler is ideal for countless commercial applications such as video conferencing using various analog and digital video formats, educational facilities, boardrooms, control rooms and court-room applications

• Switch & Scale 6-input to a Hi-def display
• HDCP 1.3 Compliant
• EDID Compliant
• Supports full HD 1080p (1920x1080@60Hz)
• Computer resolutions: XGA and WXGA
• Built-in USB for using flash disk drive (JPEG, MP3 support)
• USB port - also used for firmware update
• Seamless Switching between inputs
• On-Screen Display for easy navigation
• Powerful OSD function for full-control
• Video parameter setting (color, hue, contrast, brightness and sharpness)
• Built-in video preset function (news, entertainment, music, cinema)
• Advanced volume setting (bass, treble, balance, sound mode) & audio mode presets
• Video is compatible with NTSC 3.58, NTSC 4.42, PAL, and SECAM.
• 4-channel audio follow or audio break away switching inputs
• Audio is adjustable with audio level preset functions
• Control via: IR, RS-232 and front-panel buttons
• RS-232 compatible with any 3rd party control systems
• Front-panel LEDs for system activity
• Rack-mountable aluminum enclosure
• IR Remote control included
• Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)

• (1) Scaler (1) Power Supply
