Product Description

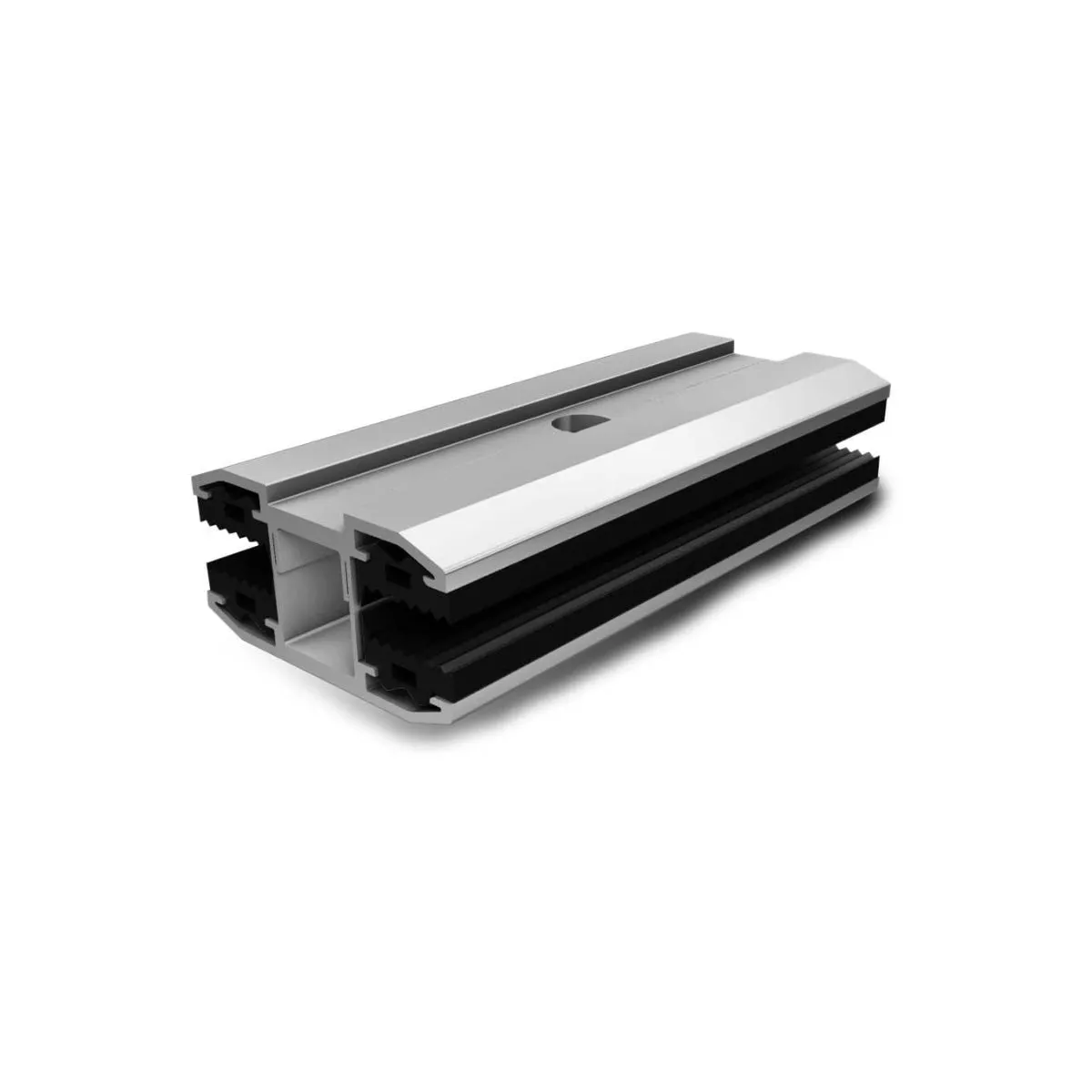

Module middle clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM

Technical Data

• Module Frame Height [mm]: 8-8
• Mounting Systems:K2 Basicrail System, K2 Multirail System, K2 Singlerail System, K2 Solidrail System
• Scope of Application: Pitched Roof
• Component Type: Module Clamp Material: Aluminium en Aw 6060/t5; Epdm
• Sales Unit: 1 Piece
• Packaging Type: 120 / Box 7.200 / Pallet
• Weight: 0.107 Kg
