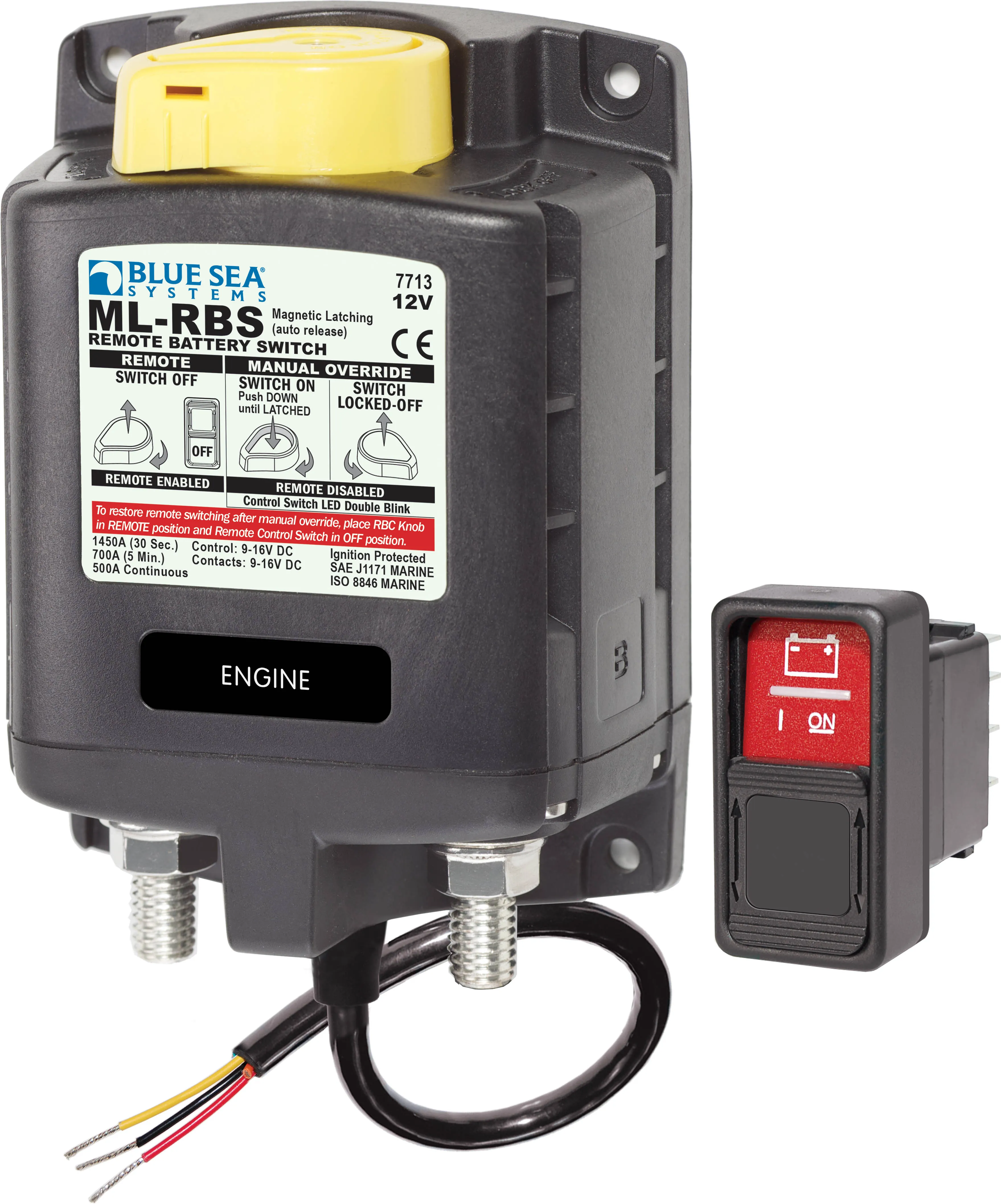

Blue Sea ML-RBS 12vDC 500A Remote Battery Switch With Manual Control Auto Release

Blue Sea ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing


• LED output to remotely indicate switch state - requires optional LED


• 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance


• 7? 8" (22 mm) stud length accepts multiple cable terminals


• Label recesses for circuit identification


• Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Control Circuit Voltage
10.1 to 16.5V DC

Control Circuit Connection
Tinned Wire

Nominal Voltage
12V DC

Mounting
#10

Coil Function
Auto-Releasing

Amperage Operating Current
8mA when OFF
13mA when ON

Amperage Operating Current when changing state
<7A (40 ms)

Continuous Rating
500A

Intermittent Rating
700A - 5 minutes

Cranking Rating 30 sec
1450A DC

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
60° C

Cable Size to Meet Ratings
2x (4/0)

Live Current Switching
300A @ 12V DC

Master Control Switch Capability
Yes

Mechanical Endurance
100,000 Cycles

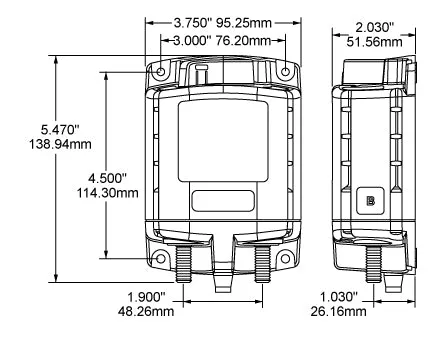

Terminal Ring Diameter Clearance
1.18in (29.97 mm)

Terminal Stud Length
0.875in (22.23 mm)

Terminal Stud Size
3/8" - 16 (M10)

Weight
2.05lb (0.93 kg)
